Contact Information
Gerber Gravity Boxes
R.R. #1 Brunner, Ontario N0K 1C0
Phone: (519) 595-4554

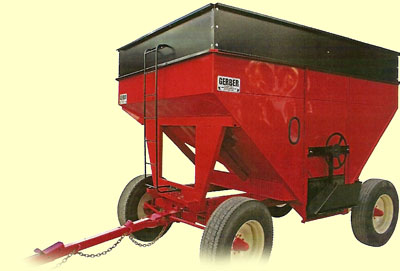

Gerber Model 270
Gerber model 270 has good slope, holds slightly more than a standard 7 1/2' x 12' box, has
small metering door that can be locked closed.
Extensions, ladder, door and chute are powder-coated baked on enamel.
The critical seams on the outside are solid welded, as are all interior seams.
Specifications:
Door 32" wide
Metering door 7" x 15"
Inspection Window 7" x 12"
Model 270, no extensions - 68" hight, approx. 270 bu.
Model 270, 18" extensions - 86" high, approx. 385 bu.
Width 98"
Length 144"
Hopper 14 Gauge
Options
Light kit
Roll top tarps

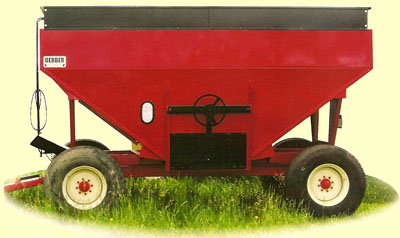

Gerber Model 400
Gerber model 400 is sand blasted before painting to ensure a better paint
job, and has a graphite coated interior. Extensions, ladder door & chute
are powder coated baked on enamel. Has small metering door for easy door operation,
that can be locked closed. Critical seams on outside as well as all interior seams
are solid welded.
Specifications:
Door 42" wide
Metering door 7" x 15"
Inspection Window 7" x 12"
Model 400, no extensions - 77" high, approx. 400 bu.
Model 400, 12" extensions - 89" high, approx. 500 bu.
Model 400, 18" extensions - 95" high, approx. 550 bu.
Width 101"
Length 180"
Hopper 12 Gauge
Options
Light kit
Roll top tarps
Features
A shot of the double doors. The double doors are designed so the smaller door takes the pressure off of the large door. These doors can be locked out.

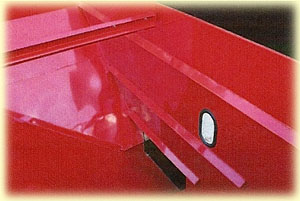

A closeup of the solid weld.
Bin pictured with the optional roll top tarp.
